• 17" x 7" aluminum wheels
• P265/70R17 all-season BSW tires
• (4) full-size doors
• 17" steel spare wheel
• Full-size spare tire
• Tire carrier winch
• Bright front bumper
• Bright rear bumper
• Body-color upper front fascia
• Front wheel air deflectors
• Rear wheel air deflectors
• Bright grille
• Automatic headlamps
• Halogen headlamps
• Black folding pwr heated outside mirrors
• Deep tinted windows
• Pwr sliding rear window
• Variable intermittent windshield wipers
• Cargo lamp
• Body-color/chrome door handles
• Front license plate bracket
• Removable tailgate w/caliper latches
• Locking tailgate

• AM/FM stereo w/MP3 compatible CD player -inc: auxiliary audio input
• Sirius satellite radio w/1-year service *Sirius radio service may not be available in some areas*
• (6) speakers
• Fixed long mast antenna

• Cruise control
• Cloth 40/20/40 bench seat w/manual adjusters
• Folding rear bench seat
• Carpeted floor covering
• Luxury front/rear floor mats
• Floor tunnel insulation
• Tilt steering column
• Temp & compass gauge
• Trip computer
• Vehicle information center
• Pwr front windows w/1-touch up/down
• Pwr door locks
• Pwr accessory delay
• Remote keyless entry
• Sentry Key theft deterrent system
• Air conditioning
• Color-keyed instrument panel bezel
• 12V auxiliary pwr outlet
• Premium vinyl door trim w/map pocket
• Day/night rearview mirror
• Overhead console w/reading lamps
• Dual assist handles
• Passenger side visor vanity mirror
• Dome lamp
• Column-mounted shifter
• Chrome accent shift knob
• Rear under seat storage compartment
• Dual note horn

• Brake assist
• Electronic stability program
• Driver/front passenger multistage airbags
• Front seat side-impact airbags
• Front/rear side curtain airbags
• Front-passenger occupant-classification system
• Front seat belt height adjusters
• Child safety door locks
• Tire pressure monitor

5.7L V8 HEMI MULTI-DISPLACEMENT VVT ENGINE

• 3.21 axle ratio
• electronically controlled throttle

• Mileage
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 625
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 16.2
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3900
• Gross Axle Wt Rating - Rear (lbs): 3900
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 6800
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-link coil
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Hypoid
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3900
• Axle Capacity - Rear (lbs): 3900
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.2 x 1.10
• Rear Brake Rotor Diam x Thickness (in): 13.9 x 0.86
• Tires
• Front Tire Order Code: TSB
• Rear Tire Order Code: TSB
• Spare Tire Order Code: TBB
• Front Tire Size: P245/70R17
• Rear Tire Size: P245/70R17
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr rack & pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 140.5
• Length, Overall w/o rear bumper (in): 229.0
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 74.8
• Overhang, Front (in): 40.0
• Overhang, Rear w/o bumper (in): 48.4
• Front Bumper to Back of Cab (in): 152.6
• Cab to Axle (in): 28.0
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 41.8
• Ground Clearance, Front (in): 9.0
• Ground Clearance, Rear (in): 8.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 67.4
• Cargo Box Width @ Top, Rear (in): 66.4
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.4
• Cargo Volume (ft³): 50.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 66.0
• Front Hip Room (in): 63.6
• Second Head Room (in): 39.9
• Second Leg Room (in): 39.4
• Second Shoulder Room (in): 65.7
• Second Hip Room (in): 63.2
• Summary

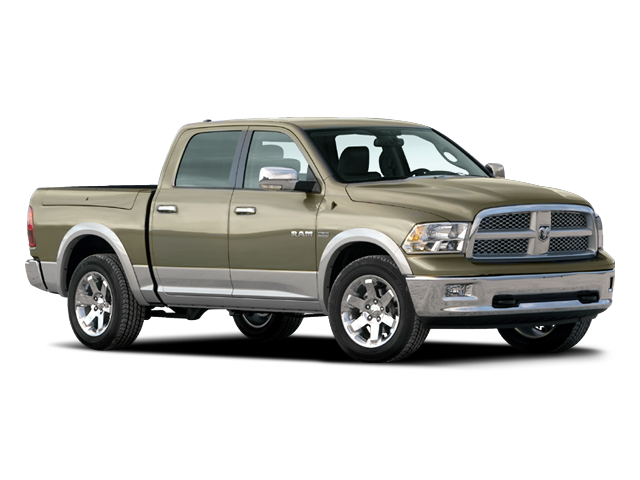

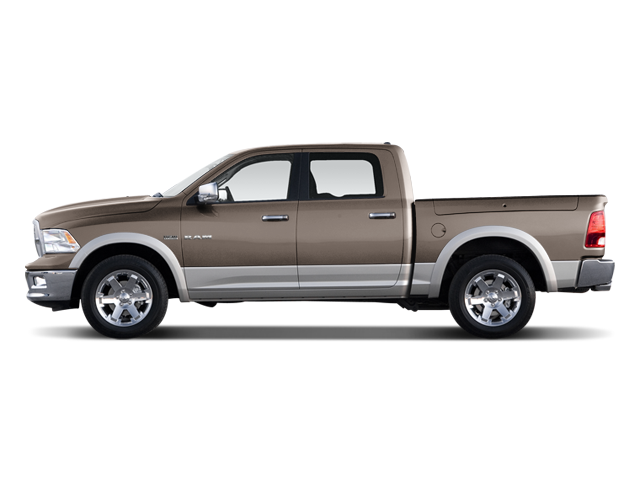

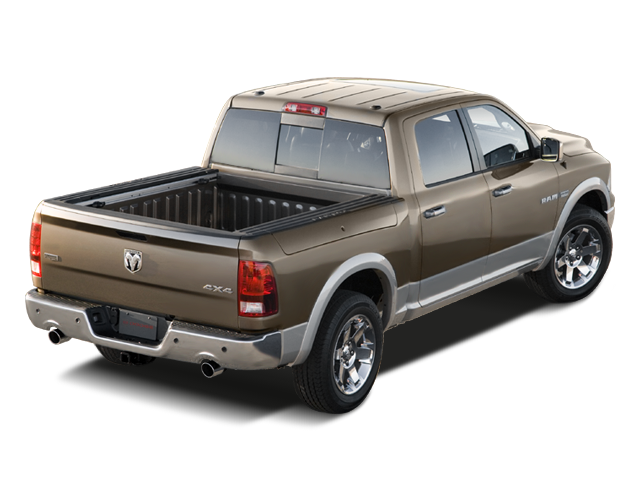

• Vehicle Name: Dodge Ram 1500
• Body Style: Crew Cab 5.7' Bed
• Body Code: 140.5" WB
